1.Introduction.

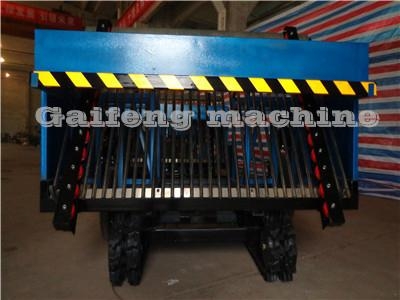

GF-1.8 Brick paver machine youtubeis invited to lay various interlock,paver into sidewalk square and parking lot.
It is quite labor saving and efficient.The machine runs alongside the baseline,automatically scrape the sand pad.
The laid road can compete with road built by labor.
2.Technical parameter
| Item |
Technical parameter |
Remark |
| Machine width |
168cm |
|
| Maximum Paving width |
140cm |
|
| Minimum Paving width |
100cm |
|
| Overall size(LXWXH) |
168cm×130cm×120cm |
|
| Distance from chassis to ground |
≥10cm |
|
| Distance from platform to ground |
≥20cm |
|
| Lifting span of leveling system |
20cm |
|
| Power |
220V AC power or 1.5kw above generator |
Regulator is required to protect electrical part if use generator |
| Estimated power |
0.5KW |
|
| Total weight |
475kgs |
|
| Mini driving speed |
0.05m/min |
|
| Maximum driving speeding |
≤4m/min |
Can adjust accordingly |
| Machine loading weight |
≤300kgs |
|
| Leveling Blade force |
≤50kgs |
|
