1.Introduction

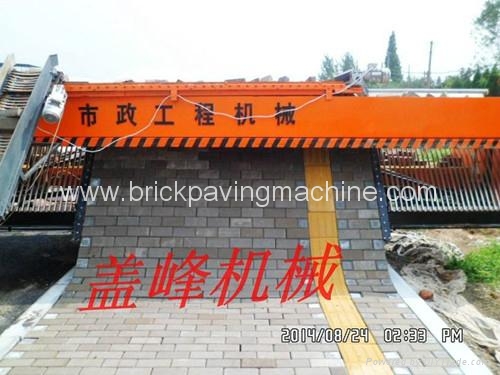

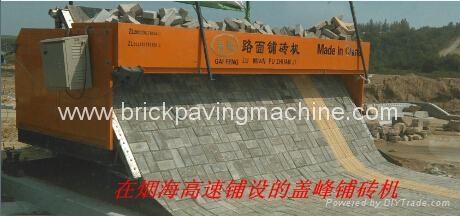

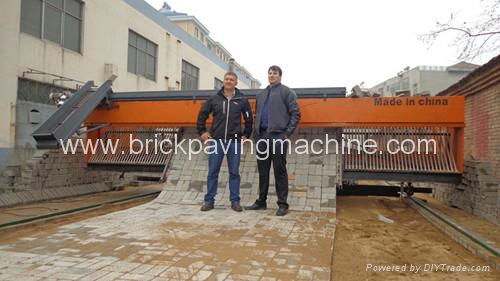

GF-3.5 road brick paving machine is invited to lay various interlock,paver into sidewalk square and parking lot.
It is quite labor saving and efficient.The machine runs alongside the baseline,automatically scrape the sand pad.
The laid road can compete with road built by labor.
Paving laying machine adopts high-quality steel, high-precision special gearbox, stainless steel guides, quality imported appliances, South Korea wireless operating systems.Body appearance is generous, quality is durable, safe, the operation is simple and convenient. Paving drive system adopts closed lubrication maintenance,no need dismantle for maintenance.The maintenance is low.
The paving width can be adjusted as per site request.The minimum paving width is 1.7m.The maximum paving width is 3.2m.The driving speed is minimum 0.05m/min.maximum 4m/min.There is speed adjusting controller,can choose speed as per need.The proper driving speed is 40cm/min.It can paver 500m2 per day easily(Theoretical efficiency of paving work 10 hours a day),It greatly improve work efficiency, reduce labor intensity. Paving machine products appear automatically instead of the original manual work, urban construction, road greening the best products.
2.Technical parameter
| Item |
Technical parameter |
Remark |
| Machine width |
350cm |
|
| Maximum Paving width |
320cm |
|
| Minimum Paving width |
200cm |
|
| Overall size(LXWXH) |
350cm×190cm×170cm |
|
| Distance from chassis to ground |
≥15cm |
|
| Distance from platform to ground |
≥40cm |
|
| Lifting span of leveling system |
20cm |
|
| Power |
220V AC power or 1.5kw above generator |
Regulator is required to protect electrical part if use generator |
| Estimated power |
2.7 KW |
|
| Total weight |
2.5T |
|
| Mini driving speed |
0.05m/min |
|
| Maximum driving speeding |
≤4m/min |
Can adjust accordingly |
| Machine loading weight |
≤700kgs |
|
| Leveling Blade force |
≤100kgs
|
|
